Commercial-Grade Orange Peel Dehydrator & Multi-Fruit Dryer with Heat Pump Technology
In the competitive landscape of food processing, the MeiYa Heat Pump Dehydrator revolutionizes the drying of citrus byproducts like orange peels and multi-fruit blends, combining energy efficiency with industrial-scale precision. Designed for commercial facilities, nutraceutical manufacturers, and organic food exporters, this system addresses the unique challenges of preserving bioactive compounds while meeting global sustainability standards.
Core Technology & Innovations
- Heat Pump-Driven Efficiency
Leveraging low-grade energy recovery and variable-frequency humidity control, the dehydrator reduces energy consumption by 60–70% compared to conventional dryers. For orange peels (high in fiber and essential oils), the system operates at 35–65°C—preventing thermal degradation of limonene and vitamin C while maintaining vibrant color and antioxidant properties. - Multi-Fruit Compatibility
• Orange Peel Processing: Adjustable airflow (up to 23,500 m³/h) ensures uniform drying of thick peels, critical for producing zest, dietary fiber additives, or natural flavorings.
• Hybrid Drying: Simultaneously process apples, grapes, and tropical fruits with programmable profiles to retain texture and nutrients (e.g., polyphenols in apple slices). - Nutrient Preservation
• Bioactive Retention: Low-temperature cycles preserve 85–90% of vitamin C and flavonoids in orange peels, aligning with nutraceutical standards for functional food ingredients.
• Thermal Degradation Mitigation: Advanced heat distribution models prevent caramelization of sugars in fruits like mangoes and pineapples.
Industrial Applications & Advantages
- Orange Peel Valorization
• Waste-to-Wealth: Convert citrus processing byproducts into high-value products:
◦ Essential Oils: Dehydrated peels retain limonene for cosmetics and aromatherapy.
◦ Dietary Fiber: Grind dried peels into soluble fiber for baked goods and supplements.
• Case Study: A European juice manufacturer reduced waste disposal costs by 40% by integrating MeiYa’s system to process 2 tons of peels daily. - Multi-Fruit Processing Flexibility
• Snack Production: Dry apple rings, banana chips, and pineapple chunks in hybrid batches, with moisture content reduced to 8–12% for shelf-stable packaging.
• Nutraceutical Ingredients: Produce antioxidant-rich powders from berries and citrus blends for health supplements. - Sustainability & Compliance
• Energy Savings: Heat recovery technology cuts CO₂ emissions by 50%, qualifying for EU Green Deal subsidies.
• Certifications: Compliant with HACCP, ISO22000, and organic standards, ensuring export readiness to North America and Europe.
Technical Specifications
• Capacity: 300 kg to 5 tons/day (modular configurations)
• Temperature Range: 35–100°C (adaptable to heat-sensitive biomaterials)
• Power: 380V/50Hz, 18 kW heating capacity
• Certifications: CE, FDA, Halal
Why Partner with MeiYa?
• Proven ROI: Payback period under 18 months for high-volume operations.
• Smart Automation: IoT-enabled PLC controls and AI-driven maintenance alerts minimize downtime.
• Global Expertise: Over 100 installations in citrus processing hubs, from Florida to Valencia.
Transform Waste into Profit with MeiYa
From citrus peels to premium fruit snacks, MeiYa’s heat pump technology delivers unmatched efficiency and quality.
Contact us for a free orange peel drying trial or custom quote!

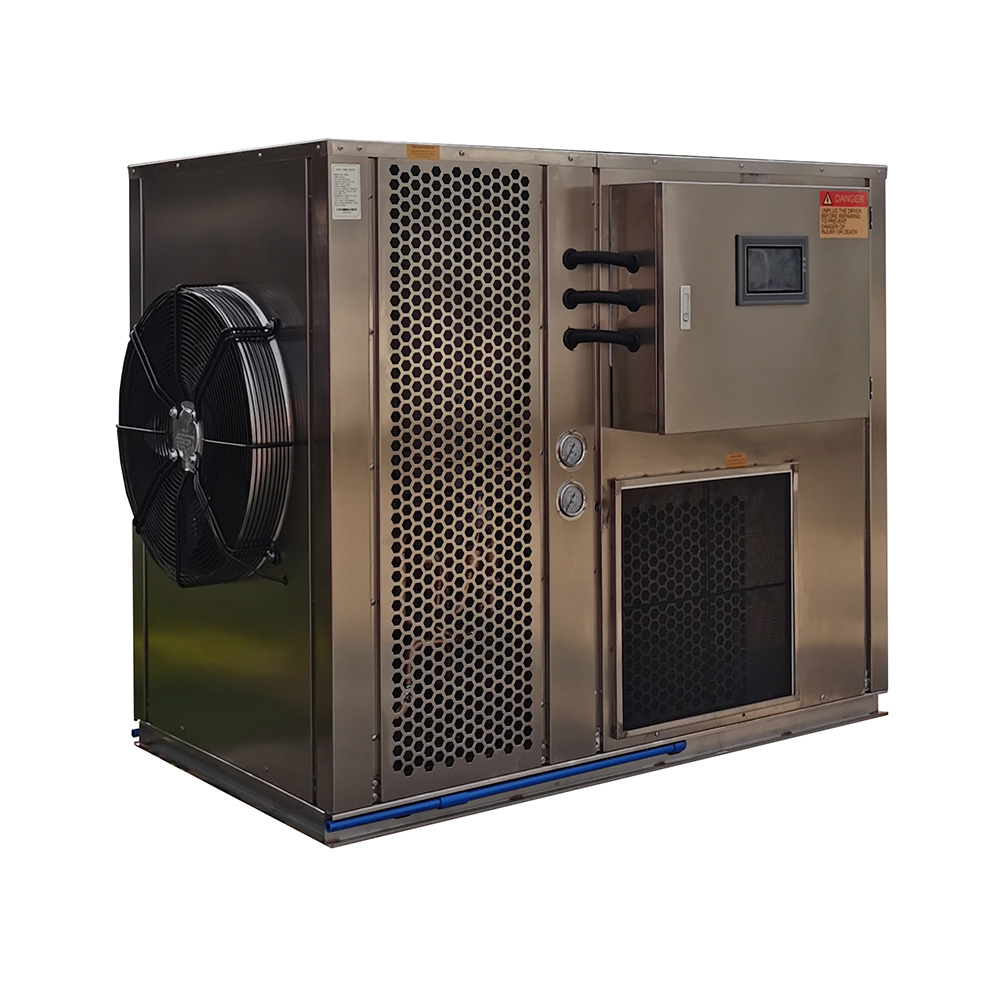

MeiYa Heat Pump Dryer Machine
- No MOQ & Customization Unlimited
- Drying + Dehumidify + Cooling
- PLC + Touch Screen Control
- 7-10 Days Delivery Time
Parameter:
| Single dryer+drying chamber | ||||
| Model | Unit | MY-03RD | MY-06RD | MY-12RD |
| Power input | KW | 5.5 | 9.5 | 19.4 |
| power supply | V/PH/HZ | 380V/3PH,50/60HZ | 380V/3PH,50/60HZ | |
| 220V/1PH,50/60HZ | ||||
| Rated current | A | 9.6A(380V),22A(220V) | 17.0 | 30.0 |
| Heating capacity | KW | 10.5 | 21.0 | 42.0 |
| Cooling capacity | KW | 7.8 | 18.0 | 32.0 |
| Dehumidity | L/H | 12.0 | 25.0 | 50.0 |
| Max temperature | ℃ | ≤75 | ≤75 | ≤75 |
| Working condition | ℃ | 0-43 | 0-43 | 0-43 |
| Electric shock protection grade | 1 | 1 | 1 | |
| Max exhause pressure | M(P)a | 30 | 30 | 30 |
| Noise | d(B(A | 75 | 75 | 75 |
| Power consumption/H | KWH | 4.8 | 8.5 | 15.0 |
| Electric heater | KW | 3.0 | 6.0 | 12.0 |
| Blowing type | / | HORIZONTAL BLOWING TYPE | ||
| Demsnssion of dryer | MM | 3160*2070*2200 | 5700*2170*2200 | 5810*3230*2200 |
| Weight | KG | 180 | 285 | 480 |
Buying Guiding:
Recommend drying machine+Drying chamber sizes
| ITEM | DESCRIPTION | PRODUCT CAPACITY | DRYING CHAMBER SIZE |
| 1 | One unit MY-03RD+Drying chamer | 300/batch | 4000*2000*2200 |
| 2 | One unit MY-06RD+Drying chamer | 600/batch | 6000*2800*2200 |
| 3 | One unit MY-12RD+Drying chamer | 1300/batch | 6000*3000*2200 |
| 4 | Two unit MY-03RD+Drying chamer | 1200/batch | 7000*2200*2200 |
| 5 | Two unit MY-06RD+Drying chamer | 1500/batch | 10000*2800*2200 |
| 6 | Two unit MY-12RD+Drying chamer | 3500/batch | 10000*3000*2200 |
Our Projects:
Our Factory:
Production Processing:
Drying Machine Components:
Standard Working Modes:
- Typically 3 modes available:
- Drying Only
- Rapid temperature rise; unable to discharge moist air
- Drying + Dehumidify
- Chamber temperature rises while discharging moist air
- Cooling
- Temperature can drop to 10°C (minimum)
- Important Note:
- If temperature control becomes unstable, switch to Temperature & Humidity Mode.
- Drying Only
Drying Machine Common Issues
- Q1: High Pressure Protection
- A1.1: Hot air circulation system failure
- AC contactor overload protection
- (Check phase loss/loose terminals/voltage instability)
- Partial fan failures
- (Verify switches configuration and burnt components)
- Mechanical fan damage
- (Replacement or removal required)
- AC contactor overload protection
- A1.2: Tray overloading phenomenon
- Optimal spacing: 8-10cm between trays
- (Causes airflow obstruction in drying chamber)
- Optimal spacing: 8-10cm between trays
- A1.3: Electronic expansion valve anomalies ▪ Automatic minimum aperture adjustment
- (Sensor calibration: Reposition or exchange Sensor 1/2) ▪ Valve body malfunction
- (Manual rotation intervention needed)
- (Sensor calibration: Reposition or exchange Sensor 1/2) ▪ Valve body malfunction
- A1.4: Chamber overheating condition
- (Temperature parameter adjustment solution)
- A1.5: Refrigerant specification error
- (High-temperature type gas recharge required)
- A1.1: Hot air circulation system failure
- Q2: Low Pressure Protection
- A2.1: Gas leakage scenario
- (Leak detection and repair protocol)
- A2.2: Extreme cold environment
- (Extended check intervals or R22/R417A refill)
- A2.3: Valve aperture deficiency
- (Expansion valve opening adjustment method)
- A2.1: Gas leakage scenario
- Q3: Exhaust Temperature Overload
- A3.1: Gas leakage recurrence
- (Refers to Q2.1 resolution process)
- A3.2: Valve operational failure
- (See A1.3.2 corrective action)
- A3.1: Gas leakage recurrence
- Q4: Sensor Malfunction
- A4.1: Temperature sensor defect
- (Replacement procedure guidelines)
- A4.1: Temperature sensor defect
- Q5: Moisture Evacuation Failure
- A5.1: Dehumidification fan damage
- A5.2: Control system malfunction
- A5.3: Power delivery irregularity
Our Services
A. Payment Service
- T/T (Telegraphic Transfer)
• Applicable to all transaction types. - L/C (Letter of Credit)
• Exclusively available for container orders. - Western Union
• Recommended for sample orders and spare parts procurement.
B. Technical Service
- Capacity Analysis & Model Recommendation
• We provide customized capacity calculations and optimal model selections based on operational requirements. - Professional Technical Support
• Comprehensive refrigeration and electronic engineering assistance for installation, debugging, and system operation. - Spare Parts & Post-Warranty Support
• Genuine spare parts and technical guidance provided during and after the warranty period. - Training Programs
• On-site or factory-based training courses available upon request.
C. After-Sales Service
- Technical Assistance
• Continuous support for installation, operation, and maintenance. - Warranty Policy
• 12-month warranty coverage with optional extension. - Cost-Effective Post-Warranty Support
• Spare parts and technical services offered at competitive rates after warranty expiration.
