Industrial Heat Pump Food Dehydrator for Grapes, Meat & Vegetables | 75% Energy Saving Commercial Dryer
In the era of sustainable food processing, the MeiYa Industrial Heat Pump Food Dehydrator emerges as a game-changing solution for businesses seeking to balance efficiency, quality, and environmental responsibility. Designed to handle high-moisture fruits like grapes, protein-rich meats, and delicate vegetables, this dehydrator leverages cutting-edge heat pump technology to slash energy consumption by 75% while delivering superior product integrity.
Core Innovations & Technology
- Heat Pump-Driven Efficiency
Inspired by industrial energy-saving transformations like the EPSEA Zero Loss Blower Desiccant Air Dryer project, MeiYa’s system recovers latent heat during drying cycles, reducing energy consumption by 70–75% compared to traditional methods. For grapes (75–85% moisture content), this translates to 15–20 L/h moisture removal at 50°C, preserving anthocyanins and natural sweetness. - Multi-Food Precision Control
• Grapes & Fruits: Adjustable temperature (30–80°C) and humidity (15–75%) prevent over-drying, ideal for raisin production or freeze-dried grape snacks.
• Meat & Seafood: Dedicated high-temperature profiles (80–100°C) ensure safe dehydration of jerky and dried fish while retaining protein integrity.
• Vegetables: Low-temperature cycles preserve vitamins in leafy greens and root vegetables, with airflow up to 23,500 m³/h eliminating hotspots. - Hygienic Industrial Design
Built with 304 stainless steel chambers and seamless surfaces, the dehydrator meets HACCP and ISO22000 standards, critical for processing sensitive items like meat and organic produce. Removable trays simplify cleaning, reducing cross-contamination risks.
Market-Driven Advantages
- Cost Savings & ROI
• Energy Efficiency: Annual electricity savings exceed $35,000 for high-volume operations (based on 8,000 hours/year at $0.12/kWh).
• Reduced Waste: Convert surplus grapes and vegetables into shelf-stable products, cutting post-harvest losses by 30%. - Scalability & Automation
• Modular configurations support batch sizes from 300 kg to 5 tons daily, with IoT-enabled PLC controls for real-time monitoring.
• Pre-programmed drying profiles adapt to hybrid batches (e.g., grapes + herbs) without manual adjustments. - Global Compliance
Certified for CE, FDA, and Halal standards, enabling seamless export to EU, Middle Eastern, and North American markets.
Applications & Case Studies
- Grape Processing Excellence
• Challenge: High sugar content risks caramelization; traditional methods degrade antioxidants.
• Solution: MeiYa’s low-temperature drying preserves 90% of polyphenols, producing premium raisins or wine-making ingredients. - Meat & Vegetable Hybrid Drying
A Mediterranean cooperative reduced energy costs by 60% by dehydrating surplus tomatoes alongside beef jerky in hybrid cycles. - Sustainability Alignment
Zero-emission operation aligns with global initiatives like the EU Green Deal, qualifying businesses for carbon credits and green subsidies.
Technical Specifications
• Power: 380V/50Hz/60Hz
• Moisture Removal: 15–20 L/h (50°C)
• Certifications: CE, ISO9001, FDA
• Warranty: 12 months comprehensive coverage with AI-driven maintenance alerts.
Why Choose MeiYa?
• Proven ROI: Payback periods under 18 months for large-scale operations.
• Future-Proof Design: Integrates blockchain energy tracking for ESG compliance.
Transform Your Food Processing Today
From vineyard to table, MeiYa empowers businesses to meet the $18.5 billion dried food market demand sustainably.
Contact us for a free grape drying trial or customized quote!

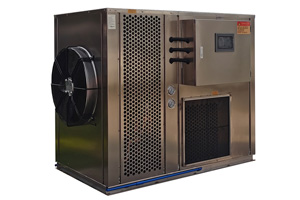

MeiYa Heat Pump Dryer Machine
- No MOQ & Customization Unlimited
- Drying + Dehumidify + Cooling
- PLC + Touch Screen Control
- 7-10 Days Delivery Time
Parameter:
| Single dryer+drying chamber | ||||
| Model | Unit | MY-03RD | MY-06RD | MY-12RD |
| Power input | KW | 5.5 | 9.5 | 19.4 |
| power supply | V/PH/HZ | 380V/3PH,50/60HZ | 380V/3PH,50/60HZ | |
| 220V/1PH,50/60HZ | ||||
| Rated current | A | 9.6A(380V),22A(220V) | 17.0 | 30.0 |
| Heating capacity | KW | 10.5 | 21.0 | 42.0 |
| Cooling capacity | KW | 7.8 | 18.0 | 32.0 |
| Dehumidity | L/H | 12.0 | 25.0 | 50.0 |
| Max temperature | ℃ | ≤75 | ≤75 | ≤75 |
| Working condition | ℃ | 0-43 | 0-43 | 0-43 |
| Electric shock protection grade | 1 | 1 | 1 | |
| Max exhause pressure | M(P)a | 30 | 30 | 30 |
| Noise | d(B(A | 75 | 75 | 75 |
| Power consumption/H | KWH | 4.8 | 8.5 | 15.0 |
| Electric heater | KW | 3.0 | 6.0 | 12.0 |
| Blowing type | / | HORIZONTAL BLOWING TYPE | ||
| Demsnssion of dryer | MM | 3160*2070*2200 | 5700*2170*2200 | 5810*3230*2200 |
| Weight | KG | 180 | 285 | 480 |
Buying Guiding:
Recommend drying machine+Drying chamber sizes
| ITEM | DESCRIPTION | PRODUCT CAPACITY | DRYING CHAMBER SIZE |
| 1 | One unit MY-03RD+Drying chamer | 300/batch | 4000*2000*2200 |
| 2 | One unit MY-06RD+Drying chamer | 600/batch | 6000*2800*2200 |
| 3 | One unit MY-12RD+Drying chamer | 1300/batch | 6000*3000*2200 |
| 4 | Two unit MY-03RD+Drying chamer | 1200/batch | 7000*2200*2200 |
| 5 | Two unit MY-06RD+Drying chamer | 1500/batch | 10000*2800*2200 |
| 6 | Two unit MY-12RD+Drying chamer | 3500/batch | 10000*3000*2200 |
Our Projects:
Our Factory:
Production Processing:
Drying Machine Components:
Standard Working Modes:
- Typically 3 modes available:
- Drying Only
- Rapid temperature rise; unable to discharge moist air
- Drying + Dehumidify
- Chamber temperature rises while discharging moist air
- Cooling
- Temperature can drop to 10°C (minimum)
- Important Note:
- If temperature control becomes unstable, switch to Temperature & Humidity Mode.
- Drying Only
Drying Machine Common Issues
- Q1: High Pressure Protection
- A1.1: Hot air circulation system failure
- AC contactor overload protection
- (Check phase loss/loose terminals/voltage instability)
- Partial fan failures
- (Verify switches configuration and burnt components)
- Mechanical fan damage
- (Replacement or removal required)
- AC contactor overload protection
- A1.2: Tray overloading phenomenon
- Optimal spacing: 8-10cm between trays
- (Causes airflow obstruction in drying chamber)
- Optimal spacing: 8-10cm between trays
- A1.3: Electronic expansion valve anomalies ▪ Automatic minimum aperture adjustment
- (Sensor calibration: Reposition or exchange Sensor 1/2) ▪ Valve body malfunction
- (Manual rotation intervention needed)
- (Sensor calibration: Reposition or exchange Sensor 1/2) ▪ Valve body malfunction
- A1.4: Chamber overheating condition
- (Temperature parameter adjustment solution)
- A1.5: Refrigerant specification error
- (High-temperature type gas recharge required)
- A1.1: Hot air circulation system failure
- Q2: Low Pressure Protection
- A2.1: Gas leakage scenario
- (Leak detection and repair protocol)
- A2.2: Extreme cold environment
- (Extended check intervals or R22/R417A refill)
- A2.3: Valve aperture deficiency
- (Expansion valve opening adjustment method)
- A2.1: Gas leakage scenario
- Q3: Exhaust Temperature Overload
- A3.1: Gas leakage recurrence
- (Refers to Q2.1 resolution process)
- A3.2: Valve operational failure
- (See A1.3.2 corrective action)
- A3.1: Gas leakage recurrence
- Q4: Sensor Malfunction
- A4.1: Temperature sensor defect
- (Replacement procedure guidelines)
- A4.1: Temperature sensor defect
- Q5: Moisture Evacuation Failure
- A5.1: Dehumidification fan damage
- A5.2: Control system malfunction
- A5.3: Power delivery irregularity
